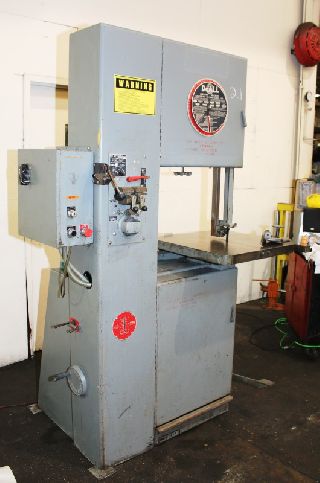

20" DOALL VERTICAL BAND SAW
MODEL: 2013-0, S/N: 321-73168, NEW: 1973
SPECIFICATIONS:
THROAT, BAND TO COLUMN ............................ 20"
MAXIMUM WORK HEIGHT ............................... 13"
BAND WIDTH CAPACITY ........................ 1/16" - 1"
SAW BAND LENGTH .................................. 154"
FILE BAND LENGTH ................................. 153"
BAND SPEED RANGE INFINTELY VARIABLE TWO RANGES:
LOW ................................. 50 TO 300 FPM
HIGH ............................. 850 TO 5,200 FPM
TABLE SIZE .................................. 24" X 24"
APPROXIMATE FLOOR SPACE ..................... 41" X 55"
MACHINE HEIGHT .................................... 81"
APPROXIMATE MACHINE WEIGHT .................. 1,150 LBS
EQUIPPED WITH:
DUAL RANGE TRANSMISSION
CUT-OFF & MITERING ATTACHMENT
WEIGHT TYPE FEED
DOALL DBW-15 BLADE WELDER GRINDER & SHEAR
3 HORSE POWER BLADE DRIVE MOTOR
MACHINED IS WIRED FOR THREE PHASE 60 CYCLE 230 VOLT OPERATION
INSPECT UNDER POWER IN OUR NEW JERSEY WAREHOUSE
CONDITION: ***** EXCELLENT *****
