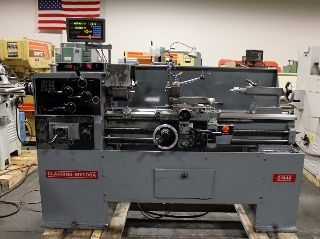

14"/20" X 40" CLAUSING METOSA
REMOVABLE GAP BED ENGINE LATHE
MODEL: C1440, S/N: 22132, NEW: 1992
SPECIFICATIONS:
CENTER DISTANCE ......................... 40"
CENTER HEIGHT ........................... 7.1"
SWING OVER BED .......................... 14.2"
SWING OVER GAP .......................... 20.4"
SWING OVER CARRIAGE ..................... 13.2"
SWING OVER CROSS SLIDE .................. 8.1"
CROSS SLIDE TRAVEL ...................... 9.65"
COMPOUND TRAVEL ......................... 4.72"
BED WIDTH ............................... 10"
GAP LENGTH IN FRONT OF FACE PLATE ....... 5.1"
SPINDLE BORE ............................ 1.65"
SPINDLE NOSE, CAMLOCK, SIZE ............. D1-5
(18) SPINDLE SPEEDS, THREE GEARED RANGES 30-2,000 RPM
HEADSTOCK SPINDLE TAPER ................. #4 MORSE
TAILSTOCK SPINDE TAPER .................. #3 MORSE
TAILSTOCK BARREL DIAMETER ............... 1.9"
TAILSTOCK QUILL TRAVEL .................. 5.51"
(48) LONGITUDINAL FEEDS ................. .0016-.040 IPR
(48) CROSS FEEDS ........................ .00045-.0114 IPR
(60) THREADS, INCH ...................... 1-1/8-108 TPI
METRIC .................................. .218-24 MM
APPROXIMATE WEIGHT ...................... 1,985 LBS.
APPROXIMATE DIMENSIONS .................. 84" X 36" X 63"
EQUIPPED WITH:
HARDENED BEDWAYS
HEAVY DUTY CAST-IRON BASE CONSTRUCTION
REMOVABLE GAP BED
INCH/METRIC THREADING CAPABILITY
MTECH MODEL: #DROII-2ML TWO-AXIS DIGITAL READOUT
8" DIAMETER BISON THREE-JAW CHUCK WITH REMOVABLE AND REVERSIBLE TOP JAWS
ROYAL HANDLEVER OPERATED DRAW BAR FOR TYPE 5C COLLETS
TAILSTOCK WITH (1) LIVE CENTER
ALORIS MODEL: CXA TOOLPOST WITH (3) TOOL HOLDERS
THREADING DIAL
FOUR-POSITION BED STOP
CHUCK GUARD
WORK LIGHT
SELF-CONTAINED COOLANT SYSTEM WITH FULL LENGTH REAR SPLASH GUARD
4.2/3 H.P. 3/60/230 VOLT TWO-SPEED SPINDLE DRIVE MOTOR WITH ELECTRICAL CONTROLS
MACHINE IS WIRED FOR 208 VOLT OPERATION.
