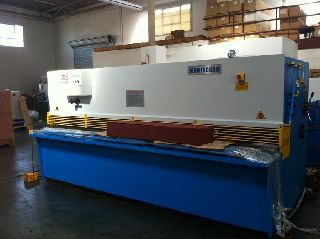

NEW BIRMINGHAM 12 x 5/16" HEAVY DUTY HYDRAULIC SHEAR
MODEL: H-1280-C MADE IN CHINA
SPECIFICATIONS:
Capacity: 12 x 5/16"
Shear angle: 1 deg. 30
No load strokes per minute: 8
Range of back gauge: 0.78" - 24"
Main motor: 15 hp
Hydraulic Oil Cap: 71 Gal.
Table Height: 31.5"
Overall Size: 15.3 L x 5.6 D x 5.6 H
Machine Weight: 24,250 Lbs
STANDARD EQUIPMENT:
Manual quick change blade gap adjustment
24" front controlled power backgauge
Pressure sensing holding-downs
Shadow lighting
Squaring scale plate
3 support arm
OPTIONAL EQUIPMENT:
3 axis CNC programmable backgauge (touch screen operated, controls backgauge depth, blade gap adjustment,
stroke length; 10 program storage capacity; can be operated in manual or automatic mode)
Change to 36" power back gauge
6 pneumatic sheet lift
8 pneumatic sheet lift
10 pneumatic sheet lift
Material support
6 squaring arm
8 squaring arm
10 squaring arm
