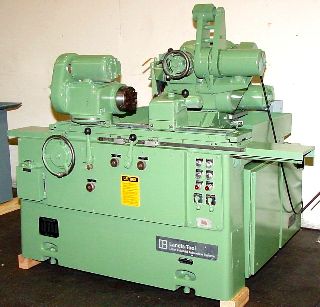

10" X 20" LANDIS (MADE IN USA) "HIGH-PRECISION"
UNIVERSAL I.D./O.D. CYLINDRICAL GRINDER
MODEL: 1R S/N: T905-13 NEW: 1991
NOMINAL SWING OVER TABLE .......................... 10"
MAXIMUM SWING OVER TABLE ...................... 10-7/8"
NOMINAL DISTANCE BETWEEN CENTERS .................. 20"
HYDRAULIC TABLE TRAVERSE ............... 2" TO 240" IPM
TRAVERSE PER TURN OF HANDWHEEL ................. 0.200"
TRAVERSE HANDWHEEL GRADUATIONS ................. 0.001"
SWIVEL TABLE GRADUATED ........ 20 DEGREES, 4" PER FOOT
WHEELHEAD:
WHEELHEAD SWIVELS LEFT & RIGHT OF CENTER ...... 90 DEG.
WHEEL SIZE .............................. 12" DIAMETER
MAXIMUM WIDTH, FULL WHEEL ......................... 3"
MINIMUM FEED GRADUATIONS - ON DIAMETER ..... 0.000050"
WORK DIAMETER REDUCTION PER REVOLUTION OF
HANDWHEEL ..................................... 0.100"
WORK DIAMETER REDUCTION PER REVOLUTION OF
FINE FEED KNOB ............................... 0.001"
WHEELHEAD MOTOR ................................ 5 HP
WORKHEAD:
WORKHEAD SWIVELS TOWARD WHEELHEAD ........ 90 DEGREES
WORKHEAD SWIVELS AWAY FROM WHEELHEAD ..... 30 DEGREES
WORKHEAD SPINDLE SPEEDS (6) ........... 60 TO 600 RPM
WORKHEAD SPINDLE NOSE ......................... A2-5"
WORKHEAD MOTOR ............................... 1/4 HP
APPROXIMATE WEIGHT .......................... 4,150 LBS
APPROXIMATE DIMENSIONS ............. 8L X 4W X 66"HT
EQUIPPED WITH:
SWING DOWN I.D. GRINDING ATTACHMENT WITH LANDIS 18,000 RPM I.D. SPINDLE
UNIVERSAL WHEELHEAD AND UNIVERSAL WORKHEAD
HYDRAULIC TABLE TRAVERSE
DUAL LIVE/DEAD SPINDLE HEADSTOCK
4-JAW CHUCK MOUNTED ON WORKHEAD
HARD FILM MICROSHERE WHEEL SPINDLE BEARINGS
COOLANT SYSTEM
CARRIAGE AND WHEELHEAD WAYS ARE AUTOMATICALLY LUBRICATED
MACHINE MOTORS ARE WIRED FOR 3/60/230-460 VOLT OPERATION
MACHINE IS PRESENTLY WIRED FOR 460 VOLTS
** INSPECT UNDER POWER IN OUR HARRISON, N.J. WAREHOUSE **
** SUPERB CONDITION & APPEARANCE. THIS MACHINE WAS
THOROUGHLY SERVICED BY US, CYCLED, TAKEN APART, CLEANED
& REPAINTED .... FINISHED ON 10/09/2013. **
