| Estatus: | CERRADO | | Id# | 19699 | | Ref: | 10220 | | Nombre: | Amada EM-2510NT used turret punch pressWith AMNC NT control Mfg:2004 | | Fabricante: | AMADA | | Modelo: | EM2510NT | | Año: | 2004 ( Usado ) | | Localización: | USA | | Precio: | | | | | |
|---|

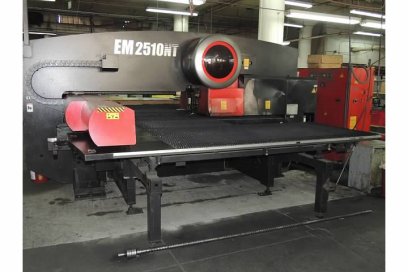

| Descripción: | Amada EM-2510NT used turret punch pressWith AMNC NT control
Mfg:2004
Standard Features
High speed punching - newly designed AC servo direct twin drive improves
hit rate, 500 HPM on 1\" centers and 1800 SPM marking system
100\" X-axis table can process 8\' sheets without repositioning, reducing
process time and improving accuracy
Energy-saving design levels out power consumption, reducing it by up to
60% compared to conventional machines
Higher positioning speed improves productivity
Brush table design provides scratch-free processing, eliminating
secondary finishing, and also minimizes noise during positioning
Free-standing, PC-based network CNC Control allows for flexible layout
Increased turret feed clearance - .984\" accepts higher forming process
Large turret, 58 station, 2 auto-index standard, reduces setup
Power vacuum slug pull system (patent pending) virtually eliminates slug pull
concerns
Amada EM-2510-NT - Technical Specifications
HPM500HPM (0.197\" stroke & 1\" pitch)
780SPM (0.197\" stroke & 0.040\" pitch)
1800SPM (0.197\" pitch marking)
Turret 45 stations with 4 auto-index stations
Slide Type Die Holder Standard
Feed Clearance 0.984\"
Press Capacity 20 Metric Tons
AMNC-F (Fanuc) Controller Network support and job input by bar code
Sheet Size (without reposition)50\" x 100\"
Axis SpeedX-Axis: 3950\"/min.
Y-Axis: 3150\"/min.
Brush Table Standard |
|---|
|
|---|
| |
| |
|
|
|
|
|
|
Que aparecen en esta página Amada EM-2510NT used turret punch pressWith AMNC NT control Mfg:2004 tiene la condición de "CERRADO", lo que significa que el presente anuncio de venta ya NO es válido.
Sin embargo, con la tecla "CONTACTO con el Vendedor", usted puede pedir al vendedor, que podría tener que vender AMADA EM2510NT.
Si usted no puede encontrar la máquina que está buscando -
suscribirse a la MachineKs.com y lugar GRATIS Anuncio de compra.
Si usted tiene equipo para la venta - el categoría Punches & Shears junto con una AMADA EM2510NT en la lista, es sólo una entre cientos de otros, donde en pocos minutos publique sus anuncios de venta. |
|---|
|
|
|
