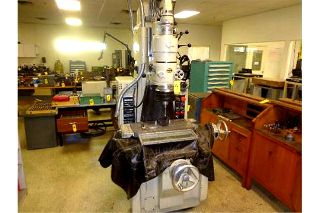

MOORE #G-18 JIG GRINDER
S/N: G-3917 NEW: 1989
TABLE SIZE .................................. 11" X 24"
TABLE TRAVEL (LONGITUDINAL).................. 18"
TABLE TRAVEL (CROSS) ........................ 11"
SPINDLE HOUSING VERTICAL TRAVEL ............. 12- 5/8"
SPINDLE VERTICAL TRAVEL ..................... 3- 5/8"
TABLE TOP TO WHEEL COLLET ................... 2" X 18"
SPINDLE TO COLUMN WAYS ...................... 10"
SPINDLE TO COLUMN BELOW WAYS ................ 13-1/2"
INFINITELY VARIABLE SPINDLE SPEEDS ...... 25 TO 225 RPM
INFINITELY VARIABLE SPINDLE FEEDS ........ 2 TO 120 SPM
SPINDLE FEED ADJUSTABLE FROM ......... 0.100" TO 3- 5/8"
GRINDING WHEEL SPEEDS ............. 6,000 TO 175,000 RPM
GRINDING CAPACITY (HOLE DIA.) ........ 1/64" TO 3- 1/2"
WITH EXTENSION PLATE ...................... 13- 1/2"
MAIN SPINDLE SLIDE ADJUSTMENT .............. 1-1/2 DEG.
EITHER WAY, 3 DEG. INCLUDED ANGLE
RADIAL OFF-SET OF GRINDING SPINDLE:
(A) - FROM CENTER TO 1-1/8" OFF CENTER BY ROUGH ADJ.
(B) - WHILE RUNNING .0001" ADJ. FOR DISTANCE OF .100"
ANYWHERE IN THE 1-1/8" RANGE
APPROXIMATE WEIGHT .......................... 4,000 LBS
APPROX. FLOOR SPACE REQUIRED ..... 58"LR X 59"FB X 91"H
MINIMUM HEIGHT WITH HEAD IN DOWN POSITION ......... 86"
MACHINE FEATURES:
ELECTRONIC SERVO DRIVE PROVIDES INFINITELY
VARIABLE SPINDLE SPEEDS (25 TO 225 RPM)
HARDENED, GROUND AND LAPPED STEEL WAYS (NO GIBS)
HARDENED, GROUND & LAPPED NITRALLOY LEAD SCREWS
LEADSCREWS & NUTS ARE FULLY IMMERSED & OPERATE IN A
BATH OF OIL.
1/5 H.P. D.C. MOTOR (MAIN SPINDLE)
EQUIPPED WITH:
MOORE JIG GRINDING HEAD
** PRESENTLY LOCATED IN CHANDLER, AZ **
** COMING SOON TO OUR HARRISON, N.J. WAREHOUSE **
** EXCEPTIONAL CONDITION - ORIGINAL PAINT!! **
