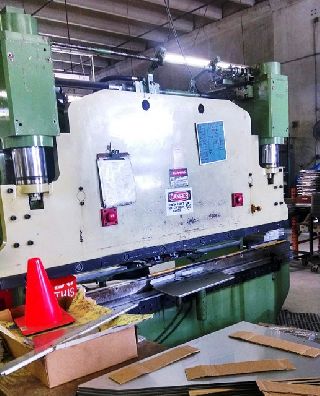

TONNAGE CAPACITY ........................ 120 TONS

OVERALL LENGTH OF BED AND RAM ........... 86"

DISTANCE BETWEEN HOUSINGS ............... 68"

STROKE LENGTH ........................... 8"

OPEN HEIGHT ............................. 14"

THROAT DEPTH ............................ 12"

ADVANCE SPEED ........................... 240 IPM

PRESS SPEED ............................. 24 IPM

RETURN SPEED ............................ 140 IPM

DRIVE MOTOR ............................. 10 HP



WEIGHT: 14,000 LB.



EQUIPPED WITH:

- CNC 24" BACK GAUGE, BALL SCREW DRIVEN WITH VERTICAL HEIGHT

ADJUSTMENT

- NUMERIC CONTROL OF SECOND AXIS

- ALL STEEL WELDED CONSTRUCTION

- TONNAGE INDICATOR WITH ADJUSTABLE LOAD CONTROL

- SECTIONAL RAM CLAMPING BARS

- DUAL PALM BUTTONS

- ADJUSTABLE SLOW DOWN SWITCH

- MECHANICAL LEVELING - TORSION BAR

- ELECTRONIC STROKE COUNTER

- FULL LENGTH DOVE TAIL SLOT

- DEFLECTION COMPENSATOR BUILT INTO BED TOP

- DIE HOLDER

- FOOT SWITCH
