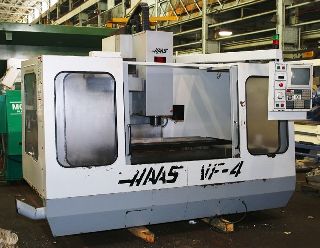

HAAS VERTICAL MACHINING CENTER
MODEL: VF-4, S/N: 3950, NEW: 1994
SPECIFICATIONS:
TABLE TRAVEL, X-AXIS (LONGITUDINAL) ...... 50"
TABLE TRAVEL, Y-AXIS (CROSS) ............. 20"
VERTICAL COLUMN TRAVEL (Z-AXIS) .......... 25"
TABLE SIZE ............................... 18" X 52"
TABLE LOAD CAPACITY ...................... 1,500 LBS.
MIN/MAX DISTANCE FROM SPINDLE NOSE TO
...TOP OF TABLE .......................... 4"/29"
SPINDLE TAPER ............................ 40
SPINDLE SPEED, GEARED RANGES (2) (INF VAR) TO 7,500 R.P.M.
RAPID TRAVERSE RATE (X, Y, & Z AXES) ..... 500 I.P.M.
MAXIMUM CUTTING FEDERATE ................. 200 I.P.M.
TOOL CHANGER CAPACITY .................... 20
MAXIMUM TOOL DIAMETER (FULL) ............. 3.5"
MAXIMUM TOOL WEIGHT ...................... 12 LBS.
APPROX DIMENSIONS ........................ 118" L-R X 110" F-B X 110" H
APPROX WEIGHT ............................ 13,300 LBS.
EQUIPPED WITH:
- HAAS CNC CONTROL
- ALL CAST IRON CONSTRUCTION
- 7,500 R.P.M. TWO-SPEED GEAR BOX
- TWENTY POSITION AUTOMATIC TOOLCHANGER
- TELESCOPIC WAY COVERS
- AUTOMATIC CHIP AUGER
- AUTOMATIC LUBRICATION SYSTEM
- PROGRAMMABLE COOLANT
- EXTERNAL COOLANT PUMP AND TANK
- 15 H.P. AC SPINDLE DRIVE MOTOR
INSPECT UNDER POWER IN OUR NEW JERSEY WAREHOUSE
CONDITION: **** EXCELLENT ****
