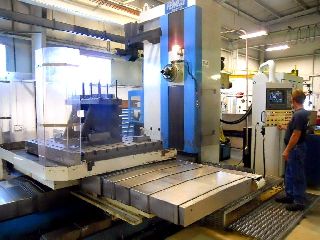

4.3" FEMCO CNC TABLE TYPE HORIZONTAL BORING MILL
MODEL: BMC-110R2, S/N: B730992
SOLD NEW AND INSTALLED AUGUST 2004
SPECIFICATIONS:
SPINDLE DIAMETER........................ 4.3"
SPINDLE TAPER........................... CAT 50
SPINDLE MOTOR........................... 35 HP
SPINDLE SPEEDS (2 GEAR RANGES).......... 5 TO 2,500 RPM
X-AXIS TRAVEL (TABLE CROSS TRAVEL)...... 79"
Y-AXIS TRAVEL ( HEADSTOCK TRAVEL)....... 71"
Z-AXIS TRAVEL (TABLE SADDLE TRAVEL)..... 67"
W-AXIS TRAVEL (SPINDLE IN AND OUT)...... 21.6"
TABLE SIZE (BUILT IN B-AXIS ROTARY)..... 56.7" X 63"
MAXIMUM TABLE LOAD...................... 13,889 LBS
TABLE INDEXING (B-AXIS)................. 360,000 DEGREES
AUTOMATIC TOOL CHANGER CAPACITY......... 32 TOOLS
CONTROL AXIS/SIMULTANEOUS CONTROL AXIS.. 5/4
MACHINE DIMENSIONS... 257" X 216" X 146.6" TALL
MACHINE WEIGHT....... 42,000 LBS
EQUIPPED WITH:
* FANUC 18-MC CNC CONTROL
* BOX WAYS
* LINEAR SCALES ON X,Y & Z AXIS
* CHIP CONVEYOR
* BUILT IN B-AXIS ROTARY TABLE WITH ROTARY SCALE
* REMOTE PULSE GENERATOR
LOW HOURS: ONLY 3,137 CUTTING HOURS
MACHINE IS COMMING OUT OF A MACHINE TOOL BUILDER AND WILL BE MOVED 7/8/14. CALL FOR PRE-REMOVAL PRICING
