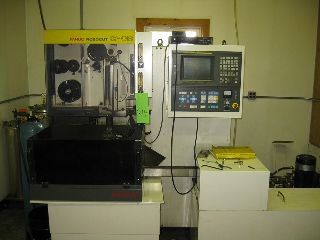

FANUC "HIGH PRECISION" "MADE IN JAPAN"
CNC WIRE EDM WITH AUTOMATIC WIRE THREADING
&SUBMERSIBLE MACHINING
MODEL: ALPHA-OB MFD: 1995
DIMENSIONS OF MAXIMUM WORKPIECE THAT
CAN BE MACHINED (SUBMERGED) ......... 25.6" x 16.5" x 5.9"
TABLE TRAVEL (X & Y AXIS)................... 11.8" x 7.9"
Z AXIS TRAVEL.................................. 5.9"
TAPER ANGLE (U & V AXIS). .................. 0 TO 15 DEG.
MAXIMUM TABLE FEEDRATE ..................... 35.4" IPM
WORK TABLE SIZE (WxD)..................... 23.6" x 15.7"
WORK TANK DIMENSIONS (WxD)................ 35.2" x 25.5"
MAX. WEIGHT OF WORK PIECE ...(550lb) ....(363lb) SUBMERGED
WIRE TENSION................................ 0 to 2500 (g)
WIRE FEED SPEED (MAX)....................... 0 TO 394" IPM
WIRE DIAMETER............................. 0.004" TO 0.012"
MACHINE TOTAL DIMENSION (WxD)............ 86.6" x 61" x 69"H
MACHINE TOOL WEIGHT........................... 3080 lbS
DIELECTRIC TANK
EXTERNAL DIMENSIONS (WxDxH).......... 48.4" X 43.3" X 33.1"H
CAPACITY..................................... 320 LITERS
FILTERING FLOW RATE ......................... 40 L/MINUTE
EQUIPPED WITH:
FANUC 16WB CNC CONTROL
CONTROLLED AXES UP TO 4 AXES AT ONE TIME (X/Y/U/V)
LINEAR& CIRCULAR INTERPOLATION
LEAST COMMAND INPUT& INCREMENT IS .000004"
LCD DISPLAY
SUBMERSIBLE MACHINING
AUTO WIRE THREADING
CHILLER
ETTCO FILTRATION SYSTEM
** INSPECT IN OUR HARRISON, NJ WAREHOUSE **
** BEAUTIFUL CONDITION & APPEARANCE **
