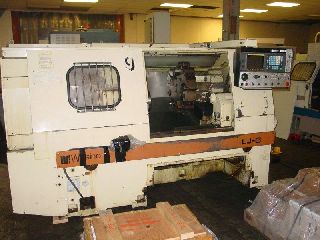

WASINO LJ-6MC CNC TURNING/MILLING CENTER

NEW: 12/1990



SPECIFICATIONS:

SWING OVER BED ......................... 17"

DISTANCE BETWEEN CENTERS ............... 24"

BAR CAPACITY ........................... 2.5"

SPINDLE NOSE ........................... A2-8

SPINDLE BORE ........................... 3"

SPINDLE SPEED LOW RANGE ................ 10-1060 RPM

SPINDLE SPEED HIGH RANGE ............... 35-3500 RPM

CHUCK SIZE ............................. 10"

SPINDLE INDEXING ....................... 0.001 C-Axis

X-AXIS TRAVEL .......................... 9-1/2"

Z-AXIS TRAVEL .......................... 24-3/8"

TURRET TYPE ............................ 12 STATION DRUM V12

NUMBER OF TOOLS ........................ 6 TURNING 6 MILLING

TURNING TOOL SIZE ...................... 1"

MAX. BORING BAR ........................ 2.5"

MILLING UNIT MOTOR ..................... 3/5 HP

MILLING UNIT SPEED ..................... 35-3000 RPM

MILLING UNIT SHANK DIA. ................ 3/4"

TAILSTOCK QUILL DIA. ................... 3-1/8"

TAILSTOCK CENTER ....................... MT#5

TAILSTOCK QUILL TRAVEL ................. 4"

MAIN MOTOR ............................. 20/25 HP

APPROX. WEIGHT ......................... 10,700 LBS.



EQUIPPED WITH:

 - FANUC 0T CNC CONTROL

 - 10" KITAGAWA B210 3-JAW HYD. CHUCK

 - FULL C-AXIS

 - 12 POSITION TURRET

 - TAILSTOCK

 - (6) ROTARY TOOLHOLDERS

 - ALL AVAILABLE STANDARD TOOLHOLDERS

 - ALL AVAILABLE MANUALS
