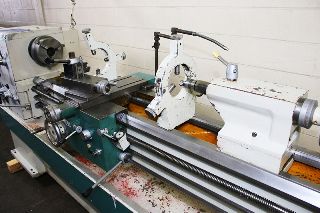

15"/22" x 60" LANSING GAP BED ENGINE LATHE
MODEL: 15-P, S/N: 200E 17424, NEW: 1970s
SPECIFICATIONS:
SWING OVER BEDWAYS ................... 15"
SWING IN REMOVEABLE GAP .............. 23-3/4"
SWING OVER CROSS SLIDE ............... 9-1/2"
HOLE THRU SPINDLE .................... 2-1/8"
DISTANCE BETWEEN CENTERS ............. 60"
WIDTH OF BED ......................... 11-1/2"
SPINDLE NOSE ......................... D1-5" CAMLOCK
SPINDLE SPEED RANGE (12) ............. 40 - 1800 RPM
ENGLISH THREADING RANGE .............. 1 - 58 TPI
METRIC THREADING RANGE .............. .5 - 6.5 mm
LONGITUDINAL FEED RANGE (76) ........ .003" - .208" IPR
CROSS FEED RANGE (76) .................0011" - .064" IPR
TAILSTOCK SPINDLE TAPER .............. #4MT
TAILSTOCK SPINDLE TRAVEL ............. 5"
APPROX FLOOR SPACE ................... 105"L x 30"W x 48"H
APPROX WEIGHT ........................ 2,950 LBS
EQUIPPED WITH:
8" 3-JAW CHUCK
STEADY REST
FOLLOW REST
QUICK CHANGE TOOLPOST
LIVE CENTER
COOLANT SYSTEM
HARDENED BED WAYS
5 HORSE POWER MAIN MOTOR
MACHINE IS WIRED FOR 220 VOLT OPERATION
INSPECT UNDER POWER IN OUR NEW JERSEY WAREHOUSE
CONDITION: ***** VERY GOOD *****
