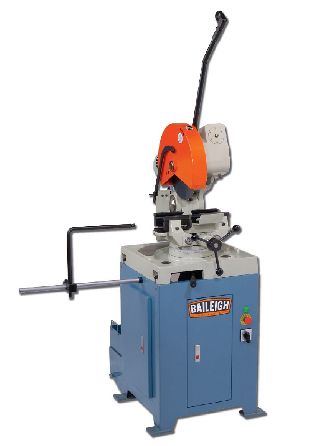

NEW BAILEIGH HEAVY DUTY MANUALLY OPERATED COLD SAW
MODEL: CS-350M
FEATURES:
14" blade
Manual feed
Miters up to 45 degrees left and right
220V, 3-phase
MITERING CAPACITIES:
Round tube @ 90 degrees: 4.331"
Round solid @ 90 degrees: 2.362"
Square tube @ 90 degrees: 4.25" x 4.25"
Rectangle tube @ 90 degrees: 4.25" x 3.5"
Round tube @ 45 degrees: 2.953"
Round solid @ 45 degrees: 1.575"
Square tube @ 45 degrees: 2.953" x 2.953"
Rectangle tube @ 45 degrees: 2.953" x 2.362"
SPECIFICATIONS:
Maximum blade diameter: 14"
Arbor size: 1.26"
Blade speed: two speeds, 26 rpm/52 rpm
Operation: manual
Head style: pivot
Maximum vise opening: 6.5"
Vise style: dual action, self centering
Head miter: 90 degrees slotting, 45 degrees left/45 degrees right
Slotting capable: yes, left and right
Coolant system: yes
Motor: 4.0/3.0 hp
Electrical requirements: 220V, 3-phase
Shipping dimensions (LxWxH): 60" x 44" x 48"
Shipping weight: 820 lbs.
OPTIONAL (call for pricing):
Blades
Bio-Degradable Saw Coolant
