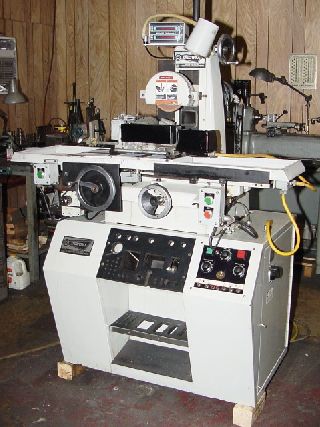

UNISON DEDTRU CENTERLESS GRINDING MACHINE
WITH "AUTO POWER TABLE CYCLE OPTION"
MODEL: 284-0000 S/N: 6283-W NEW: 1986
VERTICAL WORKING HEIGHT (CENTER OF SPINDLE ABOVE)
REGULATING ROLL ................................. 10"
CROSS FEED TRAVEL .............................. 6-3/4"
LONGITUDINAL TRAVEL ............................... 18"
TABLE SIZE ................................... 6" X 18"
WORKPIECE SIZE:
O.D. WORK WITH BASIC EQUIPMENT ....... 1/4" TO 1-1/4"
O.D. WORK W/STD. OPTIONAL ACCESSORIES .. 0.031" TO 5"
I.D. WORK - MAXIMUM O.D. ......................... 5"
MAXIMUM WHEEL DIAMETER ............................. 8"
MAXIMUM WHEEL LENGTH ............................... 3"
APPROXIMATE MACHINE WEIGHT .................. 1,500 LBS
EQUIPPED WITH:
- ACU-RITE "QWIKCOUNT II" 2-AXIS DIGITAL READOUT DISPLAY face=Times New Roman size=3>
- UNISON MODEL "PGF" DED-TRU CENTERLESS GRINDING UNIT,
(S/N: 381). PLEASE SEE THE FOLLOWING LITERATURE ON THE PGF UNIT:
- HARIG #618W SURFACE GRINDER BASE, TABLE MODIFIED
BY UNISON FOR DEDTUR GRINDING UNIT, HOLE THRU
COLUMN FOR THRUFEED GRINDING, ELECTRICAL PACKAGE,
ETC.
- "AUTOMATIC LONGITUDINAL FEED CYCLE" - PROVIDES
RAPID APPROACH TO WORK, SLOW DOWN TO FEED RATE,
FEED TO POSITIVE STOP, DWELL FOR PRESET TIME,&
AUTOMATIC RAPID CARRIAGE RETURN. SLOW DOWN
POSITION, FEED RATE, POSITIVE STOP,& DWELL TIME
ARE ADJUSTABLE. INCLUDES LIMIT SWITCH START& STOP
CONTROL OF REGULATING ROLL.
- 3 H.P. "POPE" STYLE C323U (S/N: J8510) "SUPER-PRECISION"
DIRECT DRIVE SPINDLE, ELECTRICS ARE 3/60/230-460 VOLTS
- MACHINE IS PRESENTLY WIRED FOR 3/60/240 VOLTS, 20 AMPS SERVICE
** INSPECT UNDER POWER IN NEW JERSEY **
** EXCELLENT CONDITION & APPEARANCE **
