| Estatus: | ABIERTO | | Id# | 18379 | | Ref: | 149589 | | Nombre: | 40 Swing 240 Centers GMC GML-40240H ENGINE LATHE, 5-1/8 large spindle bo | | Fabricante: | GMC | | Modelo: | GML-40240H | | Año: | ( Nuevo ) | | Localización: | USA | | Precio: | $67,950.00 | | | | |
|---|

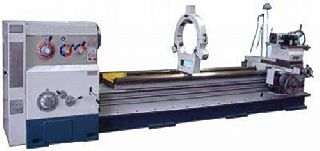

| Descripción: | NEW GMC HEAVY DUTY GAP BED LATHE
MODEL: GML-40240H
STANDARD FEATURES:
-ISO 9001 certified
-Large spindle bore 5-1/8
-Heavy duty spindle D1-11
-Heavy duty guideway width 24
-Heavy duty main motor 20 hp
-18 spindle speeds from 10 to 800 rpm
-31 kinds of inch threads, and 53 kinds of metric threads
-Threading and feeding rate change without changing gears
-4-way rapid traverse to carriage and cross slide
-Spindle is balanced, hardened and precision ground
-Spindle is supported at 2-point by high precision bearings
-All gears and shafts are hardened and precision ground
-Guideways induction hardened and precision ground
-Automatic lubrication system in headstock and feed box
-Adjustable hydraulic clutch for spindle turning and brake
-Power 220V/208V, 3 phase, 60 HZ (440V/460V is optional)
-One year industrial warranty for parts
SPECIFICATIONS:
-Max. swing over bed: 40-9/16
-Max. length of workpiece: 240
-Max. swing over cross slide: 27-9/16
-Max. swing in gap: 47-1/4
-Width of bed: 24
-Effective length in gap to spindle: 15
-Effective length in gap to chuck: 9
-Spindle bore: 5-1/8, D1-11
-Taper of spindle center: M.T.#5
-Spindle speeds: 10-800 rpm/ 18 steps
-Longitudinal feeds: 0.0027-0.66 IPR, 64 kinds
-Cross feeds: 0.00157-0.378 IPR, 64 kinds
-Inch threads: 32-2TPI, 31 kinds
-Metric threads: 1-240 mm, 53 kinds
-Module threads: 0.25-60 mm, 47 kinds
-Diametral pitch threads: 60-1/2 DP, 47 kinds
-Max. travel of top slide: 8-7/8
-Max. travel of cross slide: 24-3/16
-Longitudinal rapid travel speed: 126/min.
-Cross slide rapid travel speed: 75/min.
-Diameter of tailstock quill: 4-3/4
-Max. travel of tailstock quill: 10-5/8
-Taper of tailstock quill center: M.T.#6
-Main motor: 20 hp, 220V or 440V, 3 phase, prewired on 220V
-Rapid traverse motor: 2 hp, 220V or 440V, 3 phase, prewired on 220V
-Coolant pump motor: 1/8 hp, 220V or 440V, 3 phase, prewired on 220V
-Machine weight, approx.: 19,900 lbs.
-Overall dimensions, LxWxH: 327 x 67 x 78
STANDARD EQUIPMENT:
-20 3-jaw chuck with top reversible jaws
-25 4-jaw chuck with top reversible jaws
-31-1/2 face plate
-12 drive plate
-20 large steady rest
-Follow rest
-Removable gap
-4-way tool post
-Foot brake
-Work light and coolant system
-Section splash guard on rear of carriage
-(2) dead centers and (1) reducing sleeve
-Thread chasing dial
-4-way rapid traverse on carriage
-Tool box
OPTIONAL EQUIPMENT (call for pricing):
-Taper attachment, 30 travel, # TA-40H
-DRO, NEWALL, #NW20240, 2 axis
|
|---|
|
|---|
| |
| |
|
|
|
|
|
|
