| Estatus: | ABIERTO | | Id# | 18081 | | Ref: | 148380 | | Nombre: | 165 Ton 144 Bed Haco SRM 165-12-10 NEW PRESS BRAKE, EasyBend Graphics 2D C | | Fabricante: | Haco | | Modelo: | SRM 165-12-10 | | Año: | ( Nuevo ) | | Localización: | USA | | Precio: | $85,350.00 | | | | |
|---|
| Descripción: | NEW HACO-ATLANTIC 165 Ton x 12 SYNCHROMASTER HYD PRESS BRAKE
SRM 165-12-10 EasyBend-2D Linux-Based Control w/Angle Programming
SPECIFICATIONS:
Tonnage . . . . . 165 tons
Capacity . . . . . 165 tons
Overall Bending Length . . . 144
Clear Distance Between Housings . . 124
Maximum Stroke (Programmable). . . 7.8
Throat . . . . . . 9.8
Open Height . . . . . 15.7
H.P. Electric Motor . . . . 20 HP
Voltage . . . . . 220/440 VAC
Rapid Approach Speed . . . 165/min
Maximum Press Speed (Programmable) . 24/min
Rapid Return Speed . . . . 189/min
Length . . . . . . 162
Overall Height . . . . . 98
Front/Back . . . . . 67
Weight . . . . . . 20,500 lbs
The HACO SYNCHROMASTER Press Brake quoted belongs to a new generation of
steel fabricating equipment with several standard features which will provide your
company with safe, accurate, dependable and high productive use which can put your
company one step ahead of your competition.
HACO-ATLANTIC, Inc., member of the HACO International Group, builds SAFE
machines conforming to ANSI B11.3 American National Standard for machine
tools -power press brakes-safety requirements for construction, care and use.
We deliver our machine with a safety capabilities for owner installed safety devices.
Due to the multiple purposes of a press brake, point of operation guards should be installed
by the purchaser in accordance with Federal Safety Requirements.
PRODUCTIVITY will be increased by installing an HACO SYNCHROMASTER Press
Brake due to the versatility and easy operation of the machine. The press brake comes
standard with an ATS 560 control.
Your company will gain customer confidence resulting from the ACCURACY the HACO
Press Brake gives you. Our synchronized bed referenced linear scale design guarantees
bending accuracy only limited to material differences or tooling inaccuracies.
Most importantly, your machine will be DEPENDABLE. The machine is built with top
quality components.
CONSTRUCTION:
Rugged all steel interlocked and welded construction for maximum strength and minimum
deflection. All frames are stress relieved after welding to provide as near perfect surfaces
as possible, which in turn results in better bends. The all-welded construction also resists
torque twist that is sometimes found in bolt-together designs.
Flush floor mount. No pit or special foundation required.
Precision bed and ram. SRM press brakes use single, deep-sectioned plates for the bed
and ram. The ram is fitted with more punch clamping plates and bolts than is commonly
found on other machines. This enables the operator to easily and securely clamp small
tooling segments if he is not using one long punch. The bed is an integral part of the
machine frame and is machined in one set up in conjunction with the ram ways and cylinder
mounts. This insures positive alignmentrelationships between the ram, bed and frame for
guaranteed accuracy.
The bed has a removable table and can be re-machined in the event of accidental
overload damage or eventual wear from the tooling. Crowning to suit your application
is done by our service engineer upon installation of the machine. The amount of crown can
easily be changed if necessary. Manual controlled crowning tables are offered as an option.
Full length die slot in removable table with set screws.
Large throat gaps in side frames and a unusually clear working space.
Machine comes standard with American style tool holders. European (Amada®) style
tool holders with built-in wedge system, with or without quick manual clamping can be
installed as an option as well as hydraulic upper tool clamping for both above systems.
The use of non-metallic gibs prevents galling of the bearing surfaces and permits minimum
clearances for accurate ram guidance.
Rotating pendant mounted control.
The cylinders are manufactured by HACO, they used Parker Polypac and wiper seals.
All hydraulic components are mounted on top of the machine free from debris and dirt.
The hydraulic design is easy to service and the machine comes complete with hydraulic
fluid. The hydraulics on the SYNCHROMASTER are simply, yet accurate and most
importantly dependable. The system has a built-in safety relief valve. If an attempt is made
to bend material incapable of being bent, the machine will automatically open the safety
relief valves to release pressure and prevent machine overloads.
Most hydraulic and electric components are standard industrial/commercial grade,
off-the shelf items from major manufacturers such as Parker®, Vickers®, Rexroth® or
Hoerbigger® hydraulics and Telemecanique® or ABB® electrics.
Movable foot pedal with handgrab, dual foot pedals for ram control. Second foot pedal
and two- hand control are offered as an option.
CONTROL:

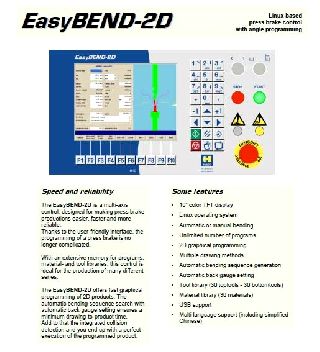

This machine comes standard with our EasyBend three (3) axis control. ( Y1-Y2 & X)
The EasyBend is an easy to program, low cost control for metal fabricators in need of a
simple but efficient CNC machine.
Important:
This control is programmable in angle, depth and pressure! When ordering tooling from
your supplier be sure to order Air Bending Tooling ! ( Cut at 85 Degrees)
BACK GAUGE UNIT:
The machine comes standard with an X-axis. The standard back gauge has the following
features:
- The X-axis comes standard with programmable position and manually adjustable finger
height, finger width.
- The machine comes standard with a 31 high speed back gauge on ball screws (except 45
up to 75 ton series standard is 26 Stroke!). We use a fast AC servo driven backstop on our
machines. The motor uses an optical encoder to ensure a very high positioning accuracy.
- A steel dovetail gauge bar spans the distance between side frames, allowing gauge fingers
to be positioned manually along its length.
- Two gauge fingers are manually adjustable (5.1/2 in height) to accommodate different
V-die heights.
- An elevating screw, adjustable with by a hand wheel, provides accurate height positioning.
- Over travel of the backstop is avoid by the use of two limit switches and the CNC control.
- Back gauge X-axis automatically references at the initial startup.
- Retraction is fully programmable. (Wait-Retract)
GENERAL
- Machine can be wired for 220 or 440V, 3 phase, 60Hz
- Service tools included.
- NO oil delivered with the machine.
- One safety, operator and service manual included.
- One year warranty on spare parts and labor, except tooling. Warranty shall be considered
void if the machine is not used in a normal and proper manner, not properly maintained,
or modified for any special use. No other warranty is either expressed or implied by
HACO-ATLANTIC, Inc. or any of its representatives. For the sake of its expediency
involving a minor failure, HACO-ATLANTIC, Inc. may at its option allow the user to
purchase a needed part locally for which he will be reimbursed upon return of the
defective part.
******* Installation, start up and training are included!!! *******
OPTIONAL EQUIPMENT:
Filler block 12 L x 3.3/4 H x 3 W * $ 2,380.00
European style quick manual top clamping * $ 5,200.00
European style bottom manual clamping * $ 2,260.00
29 front support arm with 2 T-slots and 1 tilting stop $ 470.00/each
(Not recommended on manual or CNC anti deflection tables!)
T-slot in bed, price per side * $ 1,340.00
Additional tilting stop for front support arm $ 90.00/each
American style Hydraulic top clamping * $ 18,080.00
Type 1: Adjustable front support system includes: * $ 6,480.00
- two 29 front support arms with 2 T-slots and 1 tilting stop
- manually adjustable in width along full length of the machine
Extra front support for above Type 1 front support system * $ 2,880.00/each
Type 2: Adjustable front support system includes: * $ 13,790.00
- two 19.5 front support arms with 2 T-slots and 1 tilting stop
- manually adjustable in width along full length of the machine
- manually adjustable in height with hand wheel
Extra front support for above Type 2 front support system * $ 5,790.00/each
Second foot pedal in series with standard pedal * $ 1,400.00
Emergency stop button in specified location* $ 390.00
Manual adjustable crowning table * $ 9,220.00
- Mounted on top of the bed instead of standard table, no loss of daylight opening
maximum deflection +/- 0.080
- CNC controlled crowning tables * $ 16,790.00
- ATS565 the control crowning is adjustable in %.
- ATS585 and EasyBend the force and adjustment of the crowning table is calculated
automatically.
HACO Bend 2D off-line software for ATS 585 and EasyBend $ 6,250.00
indicates factory installation only
Two hand control* $ 4,230.00
18 Triad Superlight V, Model TR18-4F-15 Infrared light curtain system $ 3,280.00
- 3/4 spaced light beam
- one beam floating blank capacity
Triad swing mount brackets for above, model 9000, price per pair $ 1,110.00
Laser Centry Safe Guarding . . . . . $ 8,950.00
Close loop Air Conditioner for Electrical Enclosure $ 2,600.00
(Recommended for HOT environments)
Extra operators manual $ 80.00
BACK GAUGE OPTIONS:
More price for 39 back gauge in lieu of standard 31 * $ 640.00
More price for extra finger block $ 1,310.00
More price for (2) tiltable fingers in lieu of std.* $ 600.00
Pneumatic finger height control * $ 3,630.00
More price for extra pneumatic finger block * $ 2,430.00
Heavy Duty R-Axis available only for ATS 585 and Easybend controls* $ 12,480.00
(Not possible with the ATS 565 control!)
This list only shows the most common options, please contact our sales office for information on
additional options. Prices of optional equipment are valid only if ordered with the machine. For
separate orders, please contact our sales office.
|
|---|
|
|---|
| |
| |
|
|
|
|
|
|
