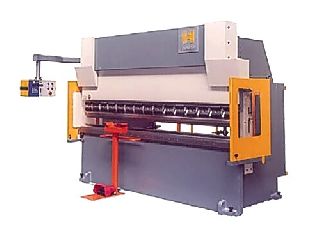

| Estatus: | ABIERTO | | Id# | 17939 | | Ref: | 147264 | | Nombre: | 45 Ton 72 Bed Haco Synchromaster 45-6-5 NEW PRESS BRAKE, Standard ATS 560 | | Fabricante: | Haco | | Modelo: | Synchromaster 45-6-5 | | Año: | ( Nuevo ) | | Localización: | USA | | Precio: | $47,300.00 | | | | |
|---|
| Descripción: | NEW HACO 45 TON x 6 CNC PRESS BRAKE
Model: 45-6-5 ATS-560 CNC CONTROL
STANDARD EXECUTION:
- Electronic controlled ram synchro system w/ servo-hydraulic valves.
- Automatic compensation of the side frame deflection by table referenced linear scales, connected w/ the ram SYNCHRO-system
- Pendant control panel with Robosoft ATS 560 CNC control
- X-axis: backgauge with 0.004 positioning accuracy
- Y1/Y2 ram axes positioning, 0.0004 accuracy
- Programmable pressure, ram stroke and ram opening height
- Programmable speed change point
- Automatic full cycle of the ram
- 31 CNC controlled backgauge on high precision ballscrews,including 2 universal fingerblocks, manually adjustable in width and height
- Ram and table machined to use American style tooling.
- Operation, programming and maintenance manual.
- Foot pedal control
d - Full oiltank
SPECIFICATIONS:
Max Capacity 45 Tons
Working Length 82
Distance between housings 63
Fast Approach Speed 189 IPM
Max Working Speed 24 IPM
Fast Return Speed 165 IPM
Motor 5-1/2 hp
Ram Stroke 3.9
Gap 7.6
Daylight Opening 11
Table Height 34
Dimensions: 90 x 97 x 57 (H x L x W)
Weight 6,600 lbs.
STANDARD CNC CONTROL MODEL ATS-560:
- 7 Segment LED display (8 digits)
- Capacity of 400 steps, max. 200 programs
- Programmable: top dead center, speed change point, backgauge retracction, material thickness
- Programmable ram depth or pressure programming
- Depth jog mode
- Backgauge jog mode
- Absolute and incremental programming of the backgauge
- Part counter (up & down) in manual and automatic model
- Diagnostics
OPTIONAL SAFETY DEVICES: (CALL FOR PRICING)
- Central adjustable anti-deflection tables (manual or CNC controlled, only possible w/ ATS600 Control
- Extra fingerblocks
- Pneumatic finger height control
- Front stops
- European and new style manual and hydraulic tool clamping
- Higher level CNC Controls
(Model ATS 570 & ATS 600)
- Safety devices
|
|---|
|
|---|
| |
| |
|
|
|
|
|
|
