NEW BIRMINGHAM 6 x 1/4" HEAVY DUTY HYDRAULIC SHEAR
MODEL: H-0665 MADE IN TAIWAN

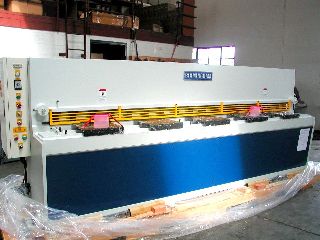

Note: Image shown is similar model H-1035 (10 x 10 Ga. model)
SPECIFICATIONS:
Cutting Capacity: 6
Mild Steel: 1/4"
Stainless Steel: 7 Ga. (3/16")
Blade Length: 64"
Strokes Per Minute (SPM): 26-40
Hold-Downs - Number: 11
Hold-Downs - Pressure (Tons): 10.1
Front Support: 40"
Back Gauge: 24"
Top Blade Rake Adjust: Hydraulic Adjustment Rake Angle
Top Blade Rake Angle: 1/2-2 Degrees
Motor: 15 hp
Oil Tank Capacity: 40 gallons
Net Weight: 10,000 lbs.
Overall Dimensions (w/o support arm): 130" x 48" x 65"
STANDARD EQUIPMENT:
Blades
24" manual back gauge
(2) 40" front support arms
40" squaring arm
Finder guard
Foot pedal
Shadow line lighting
OPTIONAL EQUIPMENT:
32" NC power back gauge w/ball screws & NC single axis control
59" squaring arm
79" squaring arm
118" squaring arm
59" front support arm
79" front support arm
118" front support arm
Pneumatic-type thin sheet supporter
Power back gauge with lifting function
Angle gauge
