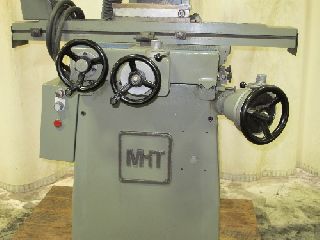

6" X 12" MITSUI "HIGH-PRECISION" (MADE IN JAPAN)
HAND FEED SURFACE GRINDER w/ROLLER BEARING TABLE
** FINE FEEDS FOR CROSS& VERTICAL AXES (.000050" GRAD.)
MODEL: MSG-200MH S/N: NEW: 1985
WIDTH& LENGTH GROUND .............................. 6" X 12"
TABLE TO SPINDLE CENTER ........................... 18"
HEIGHT UNDER 8" WHEEL TO CHUCK SURFACE ............ 11"
LONGITUDINAL TABLE TRAVEL ......................... 15"
CROSS TRAVEL ....................................... 8"
GRINDING WHEEL CAPACITY .............. 8" X 3/4" X 1-1/4"
CROSS FEED PER REV. OF HANDWHEEL
(.001" GRAD.) ................................... 0.100"
VERTICAL FEED PER REV. OF HANDWHEEL
(.0001" GRAD.) ................................. 0.0500"
FINE FEED SYSTEM FOR CROSS FEED, GRAD. TO ....... 0.00005"
FINE FEED SYSTEM FOR VERT. FEED, GRAD. TO ....... 0.00005"
APPROX. WEIGHT ................................ 1,500 LBS.
APPROX. DIMENSIONS ...................... 58" X 46" X 71"H
EQUIPPED WITH:
FINE FEED OPTIONS FOR BOTH CROSS& VERTICAL AXES,
.000050" (50 MILLIONTHS OF AN INCH) GRADUATION ON DIALS
TABLE MOVES ON LINEAR BALL BEARINGS (REMOVABLE)
MOUNTED BETWEEN (3) VEE WAYS& (1) FLAT WAY ...
DRIVEN BY CABLE SYSTEM
HARDENED& REPLACEABLE STEEL WAYS ON TABLE,
CARRIAGE/SADDLE& COLUMN
CROSS FEED HANDWHEEL (.0001" VERNIER)
PRECISION CARTRIDGE SPINDLE DESIGN
1-1/3 HP SPINDLE MOTOR
AUTOMATIC LUBRICATION SYSTEM
6
CONTACTO
