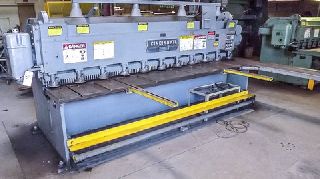

10 x 10 GA. CINCINNATI MECH. POWER SQUARING SHEAR
MODEL 1010 S/N 35831 NEW 1967
Capacity In Mild Steel .................... 10 ga.
Cutting Length ............................ 10
Motor HP .................................. 5
Strokes per Minute ........................ 65
Back Gauge Range .......................... 36"
Number of Hold Downs ...................... 11
Hold Down to Blade Edge ................... 5/8"
Standard Distance Under Holddowns ......... 1/4"
Total Holddown Force ...................... 7 tons
Rake Angle ................................ 7/32" /Ft.
Size - Four Edge Blades ................... 1" x 3"
Approximate Floor Space .... 158" W x 82" D x 79" H
Approximate Weight ......... 13,000 lbs.
Equipped With:
- 5 Squaring Arm
- 36" Front Operated Power Back Gauge
- (2) 2 Support Arms
