| Estatus: | CERRADO | | Id# | 14189 | | Ref: | 139053 | | Nombre: | 22Inch Swing 120Inch Centers Birmingham YCL-22120 ENGINE LATHE, 10 HP, 12 Speed, | | Fabricante: | Birmingham | | Modelo: | YCL-22120 | | Año: | ( Nuevo ) | | Localización: | USA | | Precio: | $14,450.00 | | | | |
|---|

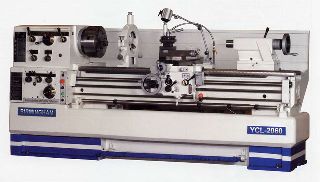

| Descripción: | New Birmingham 22Inch x 120Inch Precision High Speed Engine Lathe w/ Removable Gap Bed
Model: YCL-22120
FEATURES:
10 HP MAIN MOTOR
ONE PIECE CAST IRON BASE
D1-8 SPINDLE WITH 3-1/8Inch SPINDLE BORE
NO CHANGE GEARS REQUIRED
12 SPEEDS FROM 45 - 1,600 RPM
60 KINDS OF INCH THREADS FROM 112 - 2 TPI
47 KINDS OF METRIC THREADS FROM 0.2 - 14MM
MAIN SPINDLE HARDENED & PRECISION GROUND
BED MADE OF FINE GRAIN HIGH TENSILE CAST IRON
BEDWAYS INDUCTION HARDENED & PRECISION GROUND
ALL GEARS & SHAFTS HARDENED & PRECISION GROUND
MAIN SPINDLE SUPPORTED AT 3-POINT BY PRECISION BEARINGS
SPECIFICATIONS:
MAX. SWING OVER BED: 22Inch
DISTANCE BETWEEN CENTERS: 120Inch
MAX. EFFECTIVE CUTTING LENGTH: 116Inch
MAX. SWING OVER CROSS SLIDE: 13-3/4Inch
MAX. SWING IN GAP: 31Inch
EFFECTIVE LENGTH IN GAP: 6Inch
WIDTH OF BED: 13-3/4Inch
SPINDLE NOSE: D1-8
DIAMETER OF SPINDLE THRU BORE: 3-1/8Inch
TAPER OF SPINDLE CENTER: MT#7 / MT#5
SPINDLE SPEEDS, 12 STEPS: 25,35,55,80,120,170,235,350,525,700,1100,1600 RPM
LONGITUDINAL FEEDS: 35 KINDS, 0.0022Inch - 0.0612Inch REV.
CROSS FEEDS: 35 KINDS, 0.00048Inch - 0.01354Inch REV.
METRIC THREADS: 47 KINDS, 0.2 - 14MM
INCH THREADS: 60 KINDS, 112 - 2 TPI
MODULE THREADS: 39 KINDS, 0.1 - 7MM
DIAMETRAL PITCH THREADS: 50 KINDS, 4 - 112 DP
MAX. TRAVEL OF CROSS SLIDE: 12-15/16Inch
MAX. TRAVEL OF TOP SLIDE: 5-1/8Inch
4-WAY TOOL POST SIZE: 1Inch X 1Inch
LONGITUDINAL LEADSCREW DIA/PITCH: DIA. 1-5/8Inch / 4 TPI
DIAMETER OF TAILSTOCK QUILL: 3Inch
TAPER OF TAILSTOCK QUILL CENTER: MT#5
MAX. TRAVEL OF TAILSTOCK QUILL: 7Inch
POWER OF MAIN MOTOR: 10 HP, 230/460V/60HZ, 3 PHASE PREWIRED 230V
POWER OF COOLANT PUMP: 1/8 HP, 230/460V/60HZ, 3 PHASE PREWIRED 230V
Standard Equipment:
- FOLLOW REST
- 18Inch FACE PLATE
- 6-1/2Inch STEADY REST W/ROLLERS
- 12Inch 3-JAW CHUCK
- 16Inch 4-JAW CHUCK
- 10Inch DRIVE PLATE
- OPERATION & PARTS MANUAL
- COOLANT SYSTEM
- HAOLGEN WORK LIGHT
- REMOVABLE GAP
- 4-WAY TOOL POST
- THREAD CHASING DIAL
- HAND OIL PUMP FOR WAYS
- (2) DEAD CENTERS
- REDUCING SLEEVE MT7/MT5
- TOOL KIT WITH TOOLS
- 4-POSITION AUTOMATIC KICK-OUT
- LONGITUDINAL CARRIAGE STOP
- FULL LENGTH FOOT BRAKE
- FULL LENGTH SPLASH GUARD
Optional Equipment (call for pricing):
- TAPER ATTACHMENT
- 12Inch STEADY REST WITH ROLLER JAWS
- 5C HAND LEVER TYPE COLLET CLOSER
- DIGITAL READOUT |
|---|
|
|---|
| |
| |
|
|
|
|
|
|
